105 SALOON PARTS : EXHAUST

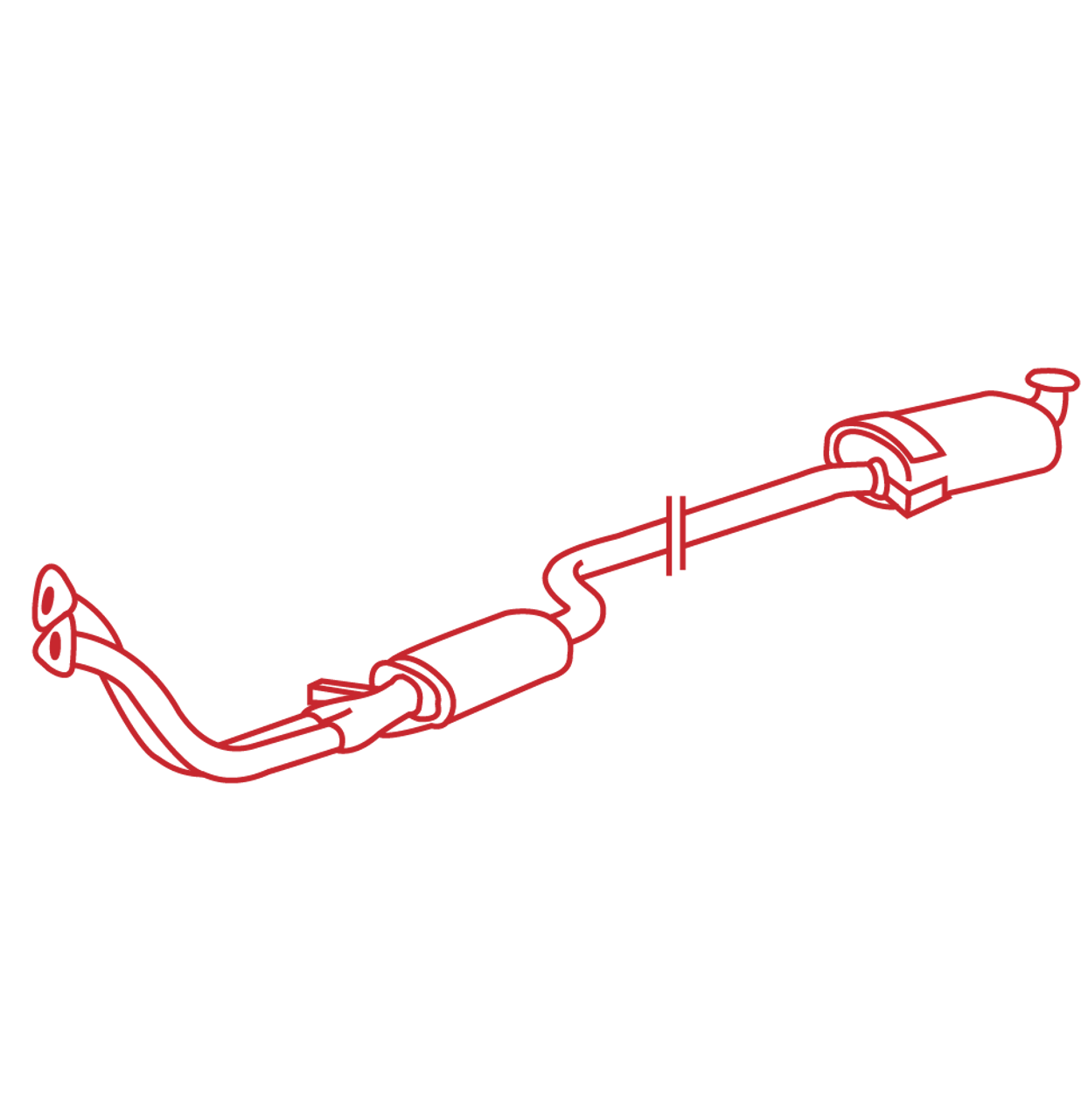

Complete exhaust system with fitting kit, to suit Berlina 1750 2000 Saloons. Please specify the year and model of your Berlina so that we can ensure we send you the correct system to suit your car. Made in Italy by IMASAF - OE Quality steel exhaust...

Complete exhaust system with fitting kit, to suit Giulia Saloons. Please specify the year, engine size and model of your Giulia so that we can ensure we send you the correct system to suit your car. Made in Italy by IMASAF - OE Quality steel exhaust...

A useful kit containing all the items you would normally need to fit a standard exhaust onto a 105 Series car. See also EX036 for the metal plates and inserts for the rubber hangers.

Front exhaust section to suit 1750 & 2000 Berlina saloons from 1971 onwards. For the equivalent section for Series 1 1750 Berlinas, see item code EX007/1. Made in Italy by IMASAF - OE Quality steel exhaust systems since 1954!

Front exhaust section to suit all left hand drive Giulia Saloons with hanging pedals and all right hand drive Giulias from 1971-78. See item code EX007 for the equivalent section for cars up to 1971. Made in Italy by IMASAF - OE Quality steel exhaust...

Exhaust manifold nut to suit 101, 105, 116 and 75 engines, including V6. 8 fitted per cylinder head. These are a smaller outer diameter than the original which makes tightening easier as you have more access room around the nut.

Exhaust/inlet manifold stud 34mm to suit all 4 cylinder 101, 105, 116 and 75 engines, including TS. There are 8 on the exhaust side and 7 on the inlet side, of which three are longer and not currently available.   Please measure your existing inlet studs...

Composite cylinder head to exhaust manifold gasket to suit 75 twin spark engine.

Copper exhaust manifold to downpipe gasket to suit all European specification exhaust systems on 105/115 and 106 series cars. Note some US specification cars have a different style 'one piece' gasket which we can get to special order. Please enquire in...

Copper cylinder head to exhaust manifold gasket to suit all 101 and 105 series engines plus 4 cylinder 116 models and 4 cylinder 75 engines (not TS).

Rubber hanger for the exhaust system on all 105/115 series cars. Normally two per car. Also fitted to 750, 101, 102 (2000) and 106 (2600) Series cars. Note. Metal plates and inserts for the rubber hangers are available under item code EX036.

Set of 2 metal plates and the insert for the bolt hole on the rubber exhaust hanger on all 105/115 series cars. Two sets are required for each hanger, usually 4 per car (2 rubber hangers). Also fitted to 750, 101, 102 (2000) and 106 (2600) Series cars...

Exhaust tailpipe o-ring for the joint between the centre and rear sections of the exhaust on all 105 series cars

Bracket gearbox - exhaust. For 105 series cars with standing pedals. Length 38mm.

Bracket gearbox - exhaust. For 105 series cars with hanging pedals. Length 32cm.

Bracket gearbox - exhaust. For 105 series cars.

Bush for the gearbox/exhaust hanger bracket that bolts to the gearbox or transaxle on 105, 116 and 75 models. 2 required per car on 105 models and 1 per car on 116 and 75 models.

Front heat insulation/protection plate for early 105 that attaches to the floor above the exhaust system towards the front of the car. Please study pictures carefully including mounting points, to make sure it will fit your car, as we are not sure what...

Middle exhaust heat insulation/protection plate that attaches to the floor above the main central muffler/silencer on all 105 series cars. See item code EX026 for the smaller plate that goes at the front end of the exhaust system. Please note, this...

Front exhaust section to suit 1600 Roundtail Spiders, Giulia Sedans and Sprint GT/GTVs/GTCs and GT Juniors (and Junior Zagatos) both left hand drive with standing pedals and right hand drive up to 1971. Note that these pipes need to be cut down/shortened...

Middle exhaust section to suit all Giulia and Berlina saloons through the range to 1978 and all GTs/GTVs up to 1970 with standing pedals, both left and right hand drive. For the equivalent part for GTs & GTVs from 1971 onwards (left hand drive with...

Rear exhaust pipe section including muffler and chrome exhaust tip, to suit all Berlina saloons, 1750 & 2000 both left and right hand drive. Made in Italy by IMASAF - OE Quality steel exhaust systems since 1954!

Rear exhaust pipe section including muffler and chrome exhaust tip to suit all GTs/GTVs and Giulia saloons up to 1978, both left and right hand drive. Made in Italy by IMASAF - OE Quality steel exhaust systems since 1954!

Rear exhaust pipe section without a silencer/muffler - for a more sporting exhaust note! Made in Italy by IMASAF - OE Quality steel exhaust systems since 1954!
